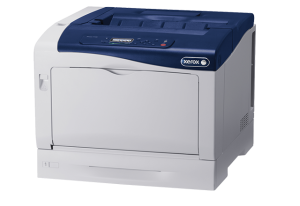

Xerox Phaser 7100N

30 ppm/30 ppm Desktop Laser
Manufacturing Status: Discontinued (08/2017)
Part Number: 7100/N

Domestic Intro Date: September 2012
SRP/Street Price: INA/$1,599
Also Sold As: None
Predecessor Model:
Replacement Model:
Replacement Date:
Color Type: 4-color
Controller: INA
CPU/Bits/MHz: INA/INA/667
Memory (std/max): 1 GB/2 GB
HDD/Storage: Optional 40-GB
PDLs: PCL 5c/6, Adobe PostScript 3, XPS
Warm-up Time: 5 sec
First-Page-Out Time (Mono/Color): 9 sec/11 sec
Mfr/Model/Country: Fuji Xerox/INA/China
Monthly Duty Cycle: 52,000 impressions
Rated Engine Life: 300,000 impressions
Recommended Monthly Volume: 8,000 impressions
Standard: 600 x 600 dpi
Enhanced: 1200 x 1200 dpi
Client OS Support: Windows XP/Server 2003/Vista/Server 2008, 7, Mac OS X 10.5+, Linux, UNIX
Network Spt: Windows, Mac, Linux, UNIX
Std Interface: 10/100BaseT Ethernet, USB 2.0
Opt Interface: 802.11b/g/n
Printer Mgmt: CentreWare Internet Services Embedded Web Server, CentreWare Web, Email alerts
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Not applicable
Paper Handling
Std/Max Paper Source(s): 2/5
Std/Max Paper Capacity: 400 sheets/2,050 sheets
Paper Size (WxL): 11.7″ x 17″ max
Print Area (WxL): 11.5″ x 16.7″ max
Paper Weights: 16-lb bond to 80-lb cover
Std Output Capacity: 250 sheets
Other Ouput: None
Bypass (Capacity/Weight): 150 sheets/16-lb bond to 80-lb cover
Automatic Duplexing: Optional
Collation: Standard
Color Depth (Bits): 1
Color Management: Xerox color correction
Fonts: 82 PCL, 136 PostScript
IPP (Web) Support: Standard
RIP Once/Print Many: Standard
Other: Earth smart driver settings, bi-directional driver, smart duplex, layout/watermarks; opt productivity kit with 40-GB hard drive provides the following additional features: font storage, Network Accounting/Xerox Standard Accounting; supports banner printing up to 47.2″/1200 mm
Security Specs
Network User Authentication: Yes
IP Address Filtering: Yes
MAC Address Filtering: Yes
HDD Overwrite: Optional
Max Overwrites: INA
HDD Encryption: Optional
Secure Print: Standard
Encrypted Secure Print: No
IPsec: Yes
Secure Sockets Layer (SSL): Yes
SNMPv3: Yes
Transport Layer Security: Yes
Other: IPv6; 802.1x authentication; image overwrite (after each job or on request); port control; removable hard drive; opt productivity kit provides 128-bit hard disk encryption and overwrite capabilities, increased secure print capacity and security certificate protection
Additional Information
Display/Characters: LCD/INA
Energy Star Compliance: Yes
Noise Level (Print/Idle): 54 dB/25 dB
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 0.9W
Energy Used in Ready Mode: 75W
Energy Used While Printing: 600W
Max Power Consumption: INA
TEC Value: INA
Power Req’s (V/Hz/Amps): 110-127/50-60/9.7
Warranty: One-year
Weight (Base Unit): 97 lbs
Dimensions (HxWxD): 16″ x 19.7″ x 21.2″
