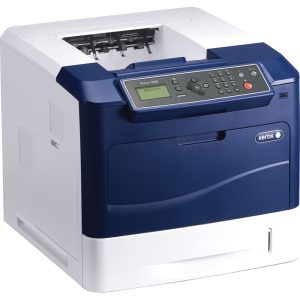

Xerox Phaser 4600N

55 ppm Desktop Laser
Manufacturing Status: Discontinued (04/2014)
Part Number: 4600/N

Domestic Intro Date: March 2011
SRP/Street Price: INA/$1,149
Also Sold As: Samsung ML-5512N
Predecessor Model: Xerox Phaser 4510N
Replacement Model: Xerox Phaser 4622DN
Replacement Date: 04/01/2014
Color Type: Not applicable
Controller: Samsung
CPU/Bits/MHz: Samsung/32/700
Memory (std/max): 256 MB/768 MB
HDD/Storage: Optional 160-GB
PDLs: PCL 5e/6, PostScript 3
Warm-up Time: 32 sec
First-Page-Out Time (Mono/Color): 7.8 sec
GENERAL SPECIFICATIONS
Mfr/Model/Country: Samsung/ML-5512/China and South Korea
Monthly Duty Cycle: 275,000 impressions
Rated Engine Life: 1,000,000 impressions
Recommended Monthly Volume: 10,000 impressions
RESOLUTION
Standard: 1200 x 1200 dpi
Enhanced: None
INTERFACE/CONNECTIVITY
Client OS Support: Windows XP/Server 2003/Vista/Server 2008/7, Mac OS 10.3+, Linux Red Hat Enterprise 4.5, Sun Solaris 9-10, Fedora Core 1-11, SUSE, Novell NetWare 5x-6x
Network Spt: Windows, Mac, NetWare, UNIX, Linux
Std Interface: 10/100/1000BaseT Ethernet, USB 2.0, USB (host)
Opt Interface: 802.11b/g/n
Printer Mgmt: CentreWare Internet Services, CentreWare Web, Xerox Device Manager, Email alerts
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Not applicable
Paper Handling
Std/Max Paper Source(s): 2/6
Std/Max Paper Capacity: 650 sheets/3,750 sheets
Paper Size (WxL): 8.5″ x 14″ max
Print Area (WxL): 8.18″ x 13.68″ max
Paper Weights: 16-lb to 32-lb bond
Std Output Capacity: 500 sheets
Other Ouput: Optional finisher, optional mailbox
Bypass (Capacity/Weight): 100 sheets/16-lb to 58-lb bond
Automatic Duplexing: Optional
Features
Collation: Optional
Color Depth (Bits): Not applicable
Color Management: Not applicable
Fonts: 93 PCL, 136 PostScript
IPP (Web) Support: Optional
RIP Once/Print Many: Standard
Other: Warm up time of 32 secs from ready, FPOT of 7.8 secs; scaling; watermarks; collation; N-up; fit to page; reduce/enlarge; toner saver; direct print from USB supports PDF, TIFF, JPEG file formats; print around feature; personal print
Security Specs
Network User Authentication: Yes
IP Address Filtering: Yes
MAC Address Filtering: No
HDD Overwrite: Optional
Max Overwrites: 3
HDD Encryption: Optional
Secure Print: Optional
Encrypted Secure Print: Optional
IPsec: Yes
Secure Sockets Layer (SSL): Yes
SNMPv3: Yes
Transport Layer Security: Yes
Other: IEEE 802.1x protocol; IPv6, audit log, opt Xerox Secure Access
Additional Information
Display/Characters: LCD/64
Energy Star Compliance: Yes
Noise Level (Print/Idle): 56 dB/30 dB
Energy Used While Power Off: 0.36W
Energy Used in Power Save Mode: 10W
Energy Used in Ready Mode: 93W
Energy Used While Printing: 900W
Max Power Consumption: INA
TEC Value: 7.7KWh
Power Req’s (V/Hz/Amps): 120/50-60/9.8
Warranty: One-year
Weight (Base Unit): 76.3 lbs
Dimensions (HxWxD): 16.5″ x 18.7″ x 21.3″
