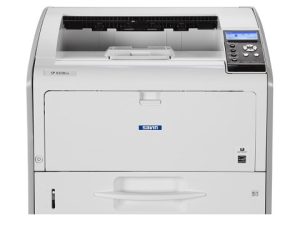

Savin SP 6430DN

Manufacturing Status: Current
Part Number: 407482

Domestic Intro Date: July 2015
SRP/Street Price: $1,729/$1,399
Also Sold As: Lanier SP 6430DN; Ricoh SP 6430DN
Predecessor Model: Savin MLP235n
Replacement Model:
Replacement Date:
Color Type: Not applicable
Controller: Ricoh
CPU/Bits/MHz: RM7035C-533L/INA/533
Memory (std/max): 512 MB/1 GB
HDD/Storage: Optional 250-GB
PDLs: PCL 5e/6, Adobe PostScript 3, opt XPS
Warm-up Time: 17 sec
First-Page-Out Time (Mono/Color): 6.5 sec
GENERAL SPECIFICATIONS
Mfr/Model/Country: Ricoh/SP 6430DN/INA
Monthly Duty Cycle: 150,000 impressions
Rated Engine Life: INA
Recommended Monthly Volume: 20,000 impressions
RESOLUTION
Standard: 1200 x 1200 dpi
Enhanced: None
INTERFACE/CONNECTIVITY
Client OS Support: Windows XP/Server 2003/Vista/Server 2008/7/Server 2012/8/8.1, Mac OS X v10.6+, Citrix, Linux, SAP, UNIX
Network Spt: Windows, Mac, Citrix, Linux, SAP, UNIX
Std Interface: 10/100/1000BaseTX Ethernet, USB 2.0, USB 2.0 (host) x 2
Opt Interface: 802.11a/b/g/n, Parallel, USB device server
Printer Mgmt: Device Manager NX, Printer Driver Packager NX, Web Image Monitor, @Remote
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Not applicable
COMMENTS
Dual SD card slots; supports mobile printing; ECO-Night Sensor allows a user to program the auto startup or shutdown of the device; dual SD card slots; @Remote solution provides for real time device monitoring; external USB keyboard support; USB device server option uses a different IP address to connect the device to a second secure network to safeguard information from security threats
Paper Handling
Std/Max Paper Source(s): 2/5
Std/Max Paper Capacity: 600 sheets/2,100 sheets
Paper Size (WxL): 11.7″ x 17″ max
Print Area (WxL): 11.3″ x 16.6″ max
Paper Weights: 15-lb to 59-lb bond
Std Output Capacity: 500 sheets
Other Ouput: None
Bypass (Capacity/Weight): 100 sheets/15-lb to 59-lb bond
Automatic Duplexing: Standard
Features
Collation: Standard
Color Depth (Bits): Not applicable
Color Management: Not applicable
Fonts: 103 PCL, 136 Adobe PostScript 3
IPP (Web) Support: Standard
RIP Once/Print Many: Standard
Other: PDF direct print; reduce/enlarge; N-up; toner-save mode; watermarks; banner printing; poster mode; sample, hold and store and print modes (require hard drive option); rotate print (1-GB memory option required); universal print driver
Security Specs
Network User Authentication: Yes
IP Address Filtering: Yes
MAC Address Filtering: INA
HDD Overwrite: Optional
Max Overwrites: INA
HDD Encryption: Optional
Secure Print: Optional
Encrypted Secure Print: INA
IPsec: Yes
Secure Sockets Layer (SSL): Yes
SNMPv3: INA
Transport Layer Security: INA
Other: LDAP; Kerberos; basic user code and 802.1x wired; encryption for address book; authentication password; network protocol on/off; unauthorized copy prevention; quota setting/account limit; SMTP over SSL; compulsory security stamp; USB device server option allows administrator to connect the device to a second secure network to safeguard information from the internet
Additional Information
Display/Characters: LCD/4 lines
Energy Star Compliance: Yes
Noise Level (Print/Idle): INA
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 0.45W
Energy Used in Ready Mode: 110W
Energy Used While Printing: 554W
Max Power Consumption: INA
TEC Value: 1.8KWh
Power Req’s (V/Hz/Amps): 120/60/INA
Warranty: One-year
Weight (Base Unit): 46.3 lbs
Dimensions (HxWxD): 13.7″ x 18.1″ x 15.4″
