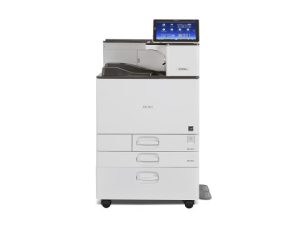

Ricoh SP C842DN

Manufacturing Status: Current
Part Number: 408106

Domestic Intro Date: February 2017
SRP/Street Price: $5,139/None
Also Sold As: Lanier SP C842DN; Savin SP C42DN
Predecessor Model: Ricoh Aficio SP C831DN
Replacement Model:
Replacement Date:
Color Type: 4-color
Controller: Next Generation Architecture
CPU/Bits/MHz: Intel Atom Processor Bay Trail/INA/1.75 GHz
Memory (std/max): 2 GB/2 GB
HDD/Storage: Standard 320-GB
PDLs: PCL 5c/6, PostScript 3, RPCS, opt Adobe PostScript 3, opt XPS
Warm-up Time: 20 sec
First-Page-Out Time (Mono/Color): 3.1 sec/4.6 sec
Mfr/Model/Country: Ricoh/SP C842DN/China
Monthly Duty Cycle: 200,000 impressions
Rated Engine Life: INA
Recommended Monthly Volume: 7,000 to 10,000 impressions
Standard: 1200 x 1200 dpi
Enhanced: 9600 x 600 dpi
Client OS Support: Windows Vista/Server 2008/7/Server 2012/8/8.1/10, Mac OS X 10.8+, Citrix, Linux, Novell NetWare, UNIX
Network Spt: Windows, Mac, Linux, NetWare, UNIX
Std Interface: 10/100BaseTX/1000BaseT Ethernet, USB 2.0, USB 2.0 (host) x 2
Opt Interface: Parallel, 802.11a/b/g/n, USB 2.0
Printer Mgmt: SmartDeviceMonitor for Admin and Client, Web SmartDeviceMonitor, Web Image Monitor, Remote Communication Gate Type S, @Remote
Near Field Communication: Standard
Embedded Software Platform or Extensible Solutions Interface: Embedded Software Architecture
*Requires opt imageable area extension unit and fusing unit for SRA3; Smart Operation Panel offers smart device look and feel, along with standard web browsing; icon shortcuts can be created for frequently-used workflows; Workstyle Innovation Technology allows users to select from a wide range of smart apps on the user interface; PxP toner technology (oil-free polyester polymerization); supports mobile and cloud printing; Document Server offers storage for 9,000 frequently-used documents (requires hard drive) ; opt one and two 550-sheet paper feed units; opt 1,500- and 2,000-sheet large capacity trays; opt SR3210 1,000-sheet finisher has two tray (250/1,000), 50-sheet stapling and 5-sheet stapleless stapling; opt SR3220 booklet finisher has two trays (250/1,000), 50 sheet stapling and V-folding up 15 sheets (60-page booklets); opt SR3230 3,000-sheet finisher has two trays (250/3,000) and 50-sheet stapling; opt folding unit features Z-, half-, outer tri-and inner tri-folds; opt four-bin mailbox separates output into four bins; opt attention light provides user with printer status at a glance
Paper Handling
Std/Max Paper Source(s): 3/6
Std/Max Paper Capacity: 1,200 sheets/4,700 sheets
Paper Size (WxL): 12.6″ x 18″* max
Print Area (WxL): INA max
Paper Weights: 16-lb to 82-lb bond, 170-lb index
Std Output Capacity: 500 sheets
Other Ouput: Optional finishers, optional mailbox
Bypass (Capacity/Weight): 100 sheets/14-lb to 82-lb bond, 170-lb index
Automatic Duplexing: Standard
Collation: Standard
Color Depth (Bits): 4
Color Management: ColorSync, ICC, ICM, Pantone
Fonts: 93 PCL, 93 PostScript
IPP (Web) Support: Standard
RIP Once/Print Many: Standard
Other: Direct printing of JPEG, PDF and TIFF files; universal print driver via download; USB 2.0 Type A/SD card slot integrated into control panel; preview documents before printing; banner printing up to 49.6″/1260 mm
Security Specs
Network User Authentication: Yes
IP Address Filtering: Yes
MAC Address Filtering: No
HDD Overwrite: Standard
Max Overwrites: 3
HDD Encryption: Standard
Secure Print: Standard
Encrypted Secure Print: Standard
IPsec: Yes
Secure Sockets Layer (SSL): Yes
SNMPv3: Yes
Transport Layer Security: Yes
Other: Wireless LAN security (WPS/IEEE802.11i/w); network protocols on/off; compulsory security stamp; unauthorized copy prevention and mask type for copying; DataOverwriteSecurity System (DOSS) for overwriting jobs
Additional Information
Display/Characters: 10.1″ color touchscreen/NA
Energy Star Compliance: Yes
Noise Level (Print/Idle): INA/INA
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 0.7W
Energy Used in Ready Mode: 48.8W
Energy Used While Printing: 1584W
Max Power Consumption: INA
TEC Value: 2.8KWh
Power Req’s (V/Hz/Amps): 120-127/60/INA
Warranty: One-year
Weight (Base Unit): 187 lbs
Dimensions (HxWxD): 34″ x 23.1″ x 27″
