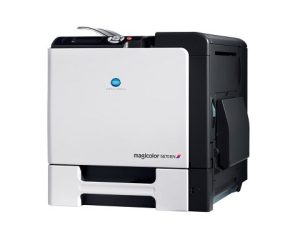

Konica Minolta magicolor 5670EN

Manufacturing Status: Discontinued
Part Number: A0EA012

Domestic Intro Date: July 2008
SRP/Street Price: $1,199None
Also Sold As: None
Predecessor Model:
Replacement Model:
Replacement Date:
Color Type: 4-color
Controller: Konica Minolta Emperon
CPU/Bits/MHz: Freescale PowerPC MPC7448/INA/867
Memory (std/max): 256 MB/1,024 MB
HDD/Storage: Optional 40-GB
PDLs: PCL 5e/c/6, PostScript 3
Warm-up Time: 47 sec
First-Page-Out Time (Mono/Color): 14.5 sec/14.5 sec
Mfr/Model/Country: Konica Minolta/magicolor 5670/China
Monthly Duty Cycle: 120,000 impressions
Rated Engine Life: INA
Recommended Monthly Volume: INA
Standard: 600 x 600 dpi
Enhanced: 9600 x 600 dpi
Client OS Support: Windows 2000/XP/Server 2003/Vista, Mac OS 10.2+, Linux
Network Spt: Windows, Mac, Linux, NetWare
Std Interface: 10/100/1000BaseTX Ethernet, Parallel, USB 2.0, USB 1.1 (host)
Opt Interface: None
Printer Mgmt: PageScope Data Administrator, PageScope Net Care Device Manager, PageScope WebConnection
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Not applicable
First-page-out-time color/black: 14 sec; PictBridge 1.0 via USB 1.1 host; print resolution 600 x 600 dpi x 4 bit contone; direct printing of XPS, PDF, JPEG and TIFF files from a USB flash driver or via PageScope Direct Print; 24/7 online technical support; ships with 3,000-page starter cartridges; opt staple finisher has two bins that hold 100 and 500 sheets (requires optional hard drive or 1-GB+ Compact Flash card); security features include IPv6, SSL, Ipsec; Single-pass device.
Paper Handling
Std/Max Paper Source(s): 2/4
Std/Max Paper Capacity: 600 sheets/1,600 sheets
Paper Size (WxL): 8.5″ x 14″ max
Print Area (WxL): 8.33″ x 13.7″ max
Paper Weights: 16-lb to 24-lb bond
Std Output Capacity: 250 sheets
Other Ouput: Optional finisher
Bypass (Capacity/Weight): 100 sheets/16-lb bond to 110-lb index
Automatic Duplexing: Optional
Collation: Standard
Color Depth (Bits): 4
Color Management: Enhanced Automatic Image Density Control (eAIDC), ICC device profiles, Automatic ICC-based color matching, Dynamic Contone Screening; PANTONE Color Tables, SWOP, Commercial, EuroColor, DIC and TOYO press emulations
Fonts: Info not avail
IPP (Web) Support: Standard
RIP Once/Print Many: Standard
Other: Toner-save mode reduces toner consumption by up to 60%; direct XPS (requires hard drive option) and PDF, JPEG and TIFF printing (requires hard drive or Compact Flash options); banner printing up to 46.7″
Security Specs
Network User Authentication: INA
IP Address Filtering: INA
MAC Address Filtering: INA
HDD Overwrite: INA
Max Overwrites: INA
HDD Encryption: INA
Secure Print: Optional
Encrypted Secure Print: INA
IPsec: INA
Secure Sockets Layer (SSL): INA
Transport Layer Security: INA
Additional Information
Display/Characters: LCD/64
Energy Star Compliance: Yes
Noise Level (Print/Idle): 56 dB/39 dB
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 18W
Energy Used in Ready Mode: 200W
Energy Used While Printing: 750W
Max Power Consumption: 1450W
TEC Value: 6.4KWh
Power Req’s (V/Hz/Amps): 120/50-60/INA
Warranty: INA
Weight (Base Unit): 81.4 lbs
Dimensions (HxWxD): 16.5″ x 16.5″ x 20.7″
