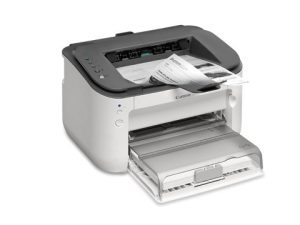

Canon imageCLASS LBP6230dw

Manufacturing Status: Current
Part Number: 9143B008AA

Domestic Intro Date: September 2014
SRP/Street Price: $295/INA
Also Sold As: None
Predecessor Model: Canon imageCLASS LBP6200d
Replacement Model:
Replacement Date:
Color Type: Not applicable
Controller: INA
Memory (std/max): 64 MB/64 MB
HDD/Storage: None
Warm-up Time: 10 sec
First-Page-Out Time (Mono/Color): 6 sec
Mfr/Model/Country: Canon/INA/INA
Monthly Duty Cycle: 8,000 impressions
Rated Engine Life: INA
Recommended Monthly Volume: INA
Standard: 600 x 600 dpi
Enhanced: 2400 x 600 dpi
Client OS Support: Windows XP/Server 2003/Vista/Server 2008/7/Server 2012/8/8.1, Mac OS 10.6+, Citrix, Linux
Network Spt: Windows, Mac, Citrix, Linux
Std Interface: 10/100BaseTX Ethernet, USB 2.0, 802.11b/g/n
Opt Interface: None
Printer Mgmt: INA
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Not applicable
On-Demand Fixing technology allows for faster warm up time; Auto Image Refinement AIR technology enhances print quality
Paper Handling
Std/Max Paper Source(s): 1/1
Std/Max Paper Capacity: 250 sheets/250 sheets
Paper Size (WxL): 8-1/2″ x 14″ max
Print Area (WxL): INA max
Paper Weights: 16-lb to 43-lb bond
Std Output Capacity: 100 sheets
Other Ouput: None
Bypass (Capacity/Weight): 1 sheet/16-lb to 43-lb bond
Automatic Duplexing: Standard
Collation: Standard
Color Depth (Bits): Not applicable
Color Management: Not applicable
Fonts: Host-based
IPP (Web) Support: Standard
RIP Once/Print Many: INA
Other: Poster mode; booklet mode; watermarks; toner-save mode
Security Specs
Network User Authentication: INA
IP Address Filtering: Yes
MAC Address Filtering: Yes
HDD Overwrite: Not applicable
Max Overwrites: Not applicable
HDD Encryption: Not applicable
Secure Print: INA
Encrypted Secure Print: INA
IPsec: INA
Secure Sockets Layer (SSL): INA
SNMPv3: Yes
Transport Layer Security: INA
Other: WEP (64/128 bit); TKIP; AES
Additional Information
Display/Characters: LED/NA
Energy Star Compliance: Yes
Noise Level (Print/Idle): 52 dB/Inaudible
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 1.6W
Energy Used in Ready Mode: 2.1W
Energy Used While Printing: 400W
Max Power Consumption: 930W
TEC Value: 0.7KWh
Power Req’s (V/Hz/Amps): 120/50-60/INA
Warranty: One-year
Weight (Base Unit): 16.7 lbs
Dimensions (HxWxD): 9.6″ x 14.9″ x 11.5″
