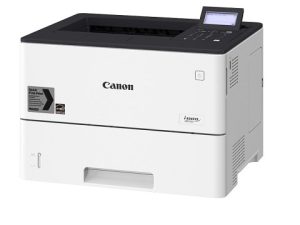

Canon imageCLASS LBP312dn

Manufacturing Status: Current
Part Number: 0864C002AA

Domestic Intro Date: March 2017
SRP/Street Price: $1,695/INA
Also Sold As: None
Predecessor Model: Canon imageCLASS LBP6780dn
Replacement Model:
Replacement Date:
Color Type: Not applicable
Controller: Canon
CPU/Bits/MHz: INA/INA/528 and 264
Memory (std/max): 1 GB/1 GB
HDD/Storage: None
PDLs: PCL5c/e/6, Adobe PostScript 3, UFR II, XPS
Warm-up Time: 30 sec
First-Page-Out Time (Mono/Color): 6.2 sec
Mfr/Model/Country: Canon/INA/INA
Monthly Duty Cycle: 150,000 impressions
Rated Engine Life: INA
Recommended Monthly Volume: 1,500 to 7,500 impressions
Standard: 600 x 600 dpi
Enhanced: INA
Client OS Support: Windows Vista/Server 2008/7/Server 2012/8//8.1/10/Server 2016, Mac OS 10.7+
Network Spt: Windows, Mac
Std Interface: 10/100/1000BaseTX Ethernet, USB 2.0, USB (host)
Opt Interface: None
Printer Mgmt: Remote User Interface, imageWARE Management Console
Near Field Communication: No
Embedded Software Platform or Extensible Solutions Interface: Multifunctional Embedded Application Platform (MEAP)
Mobile and cloud ready with Canon PRINT Business, Google Cloud Print, Apple AirPrint and Mopria Print Service; Mopria certified; tiltable 5-line LCD panel
Paper Handling
Std/Max Paper Source(s): 2/5
Std/Max Paper Capacity: 650 sheets/2,300 sheets
Paper Size (WxL): 8.5″ x 14″ max
Print Area (WxL): 8.1″ x 13.6″ max
Paper Weights: 16-lb to 32-lb bond
Std Output Capacity: 250 sheets
Other Ouput: None
Bypass (Capacity/Weight): 100 sheets/16-lb to 53-lb bond
Automatic Duplexing: Standard
Collation: Standard
Color Depth (Bits): Not applicable
Color Management: Not applicable
Fonts: 105 PCL, 136 PostScript
IPP (Web) Support: Standard
RIP Once/Print Many: Standard
Other: Print from USB (JPEG, PDF, TIFF, XPS); opt barcode printing; quick start up mode; recovery mode; poster mode; booklet mode; watermarks; toner-save mode
Security Specs
Network User Authentication: INA
IP Address Filtering: Yes
MAC Address Filtering: Yes
HDD Overwrite: Not applicable
Max Overwrites: Not applicable
HDD Encryption: Not applicable
Secure Print: Standard
Encrypted Secure Print: INA
IPsec: Yes
Secure Sockets Layer (SSL): INA
SNMPv3: Yes
Transport Layer Security: INA
Additional Information
Display/Characters: LCD/5 lines
Energy Star Compliance: Yes
Noise Level (Print/Idle): 54 dB/Inaudible
Energy Used While Power Off: INA
Energy Used in Power Save Mode: 1.2W
Energy Used in Ready Mode: 9.6W
Energy Used While Printing: 700W
Max Power Consumption: INA
TEC Value: 1.7KWh
Power Req’s (V/Hz/Amps): 120/50-60/INA
Warranty: One-year
Weight (Base Unit): 25.4 lbs
Dimensions (HxWxD): 10.9″ x 16.1″ x 14.8″
